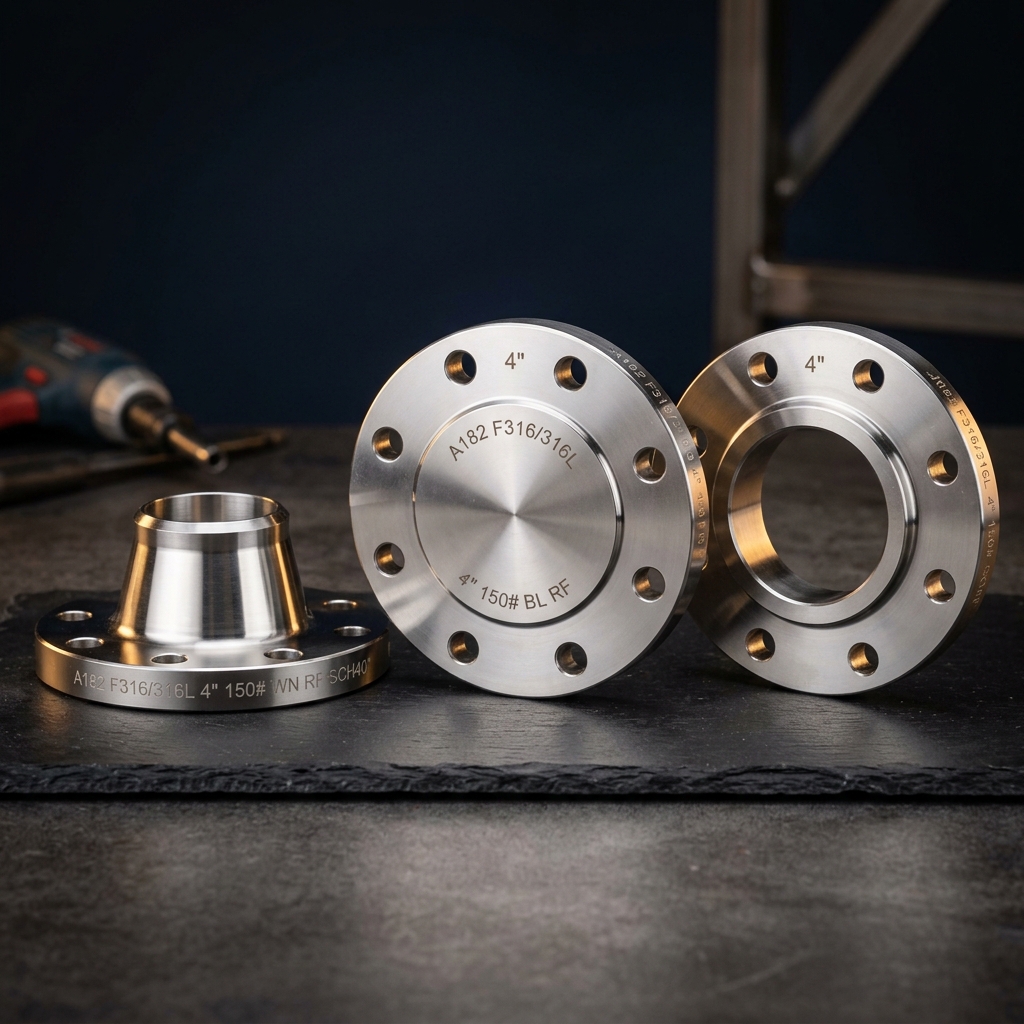

Manufacturer, Exporter & Stockist — Weld Neck, Slip On, Blind, Socket Weld, Lap Joint & Threaded
Steel Inox Pvt. Ltd. manufactures a full range of stainless steel flanges for strength, precision, and leak-proof performance in critical piping systems.
Manufactured to ASTM A182, ASME SA182, ASME B16.5, B16.47, EN 1092-1, and API 605. Dimensional accuracy and complete traceability assured.
For high-pressure/temperature with tapered hub for even stress distribution.
Cost-effective for moderate-pressure systems — welded on both sides.
Seal piping ends and pressure vessel openings — exact thickness specs.
Small-diameter, high-pressure piping — smooth bore, excellent fatigue resistance.
Used with stub ends for easy alignment and frequent dismantling.
No welding required — for low-pressure and explosive atmosphere applications.
| Standards | ASTM A182, ASME SA182, B16.5, B16.47, EN 1092-1, API 605 |
| Grades | F304, F304L, F316, F316L, F321, F347, F310, F317L, F904L, F51, F53 |
| Types | Weld Neck, Slip On, Blind, Socket Weld, Lap Joint, Threaded |
| Size Range | NPS 1/2" – NPS 60" (DN15 – DN1500) |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |
| Surface Finish | 125 AARH, 250 AARH, or as specified |
| Testing | Hydrostatic, PMI, Ultrasonic, Dye Penetrant |
Share your NPS/DN size, pressure class, grade, and face type.
